PRODUCTS > CARVING TOOLS

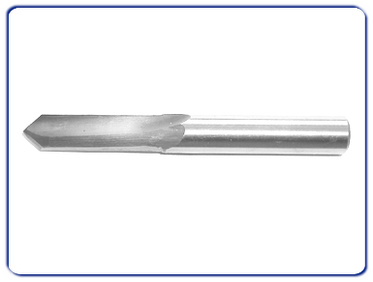

Article 0620 Carving bits arrow bottom z2
Technical specifications:
HS (HSS) carving bits with two cutting edges.
The right tool for the automated and manual processes.
Suitable for non glued softwood and hardwood.
Application:
Carving machine.

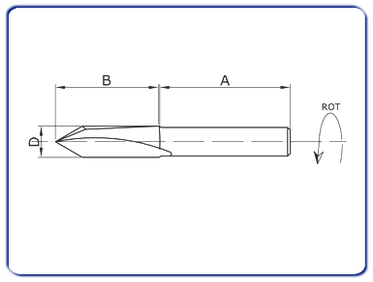

Diameter (D) |
Cutting hight (B) |
Shank (d x A) |
Cutting edges (Z) |
Rotation (R) |
10 |
34 |
11 x 50 |
2 |
left / right |
12 |
34 |
11 x 50 |
2 |
left / right |
14 |
36 |
11 x 50 |
2 |
left / right |
16 |
36 |
11 x 50 |
2 |
left / right |
All measurments are in millimeters (mm). |
