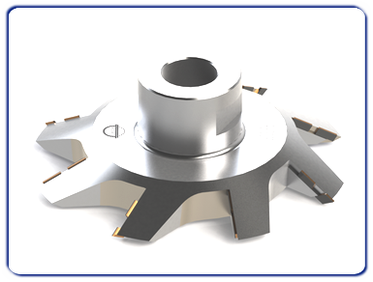

Article 1057 Diamond panel raising post-forming cutters

Technical specifications:
Plain cutter with straight cutting edge for working laminate in the process of post-forming.
Tool is constructed of steel with a high chromium content with the diamond cutting edges.
Suitable for hard, glued woods, lamination panels, MDF, plywood and chipboard..

Application:
Post-forming plants.

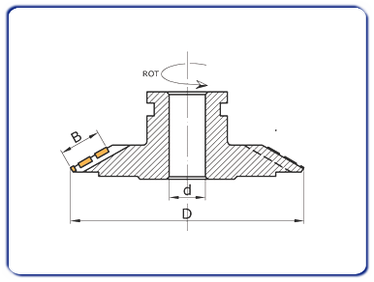

Diameter (D)

Cutting hight (B)

Bore (F)

Cutting edges (Z)

200

34/44/54

35/40

4+4/12

All measurments are in millimeters (mm).
