PRODUCTS > ROUTER TOOLS

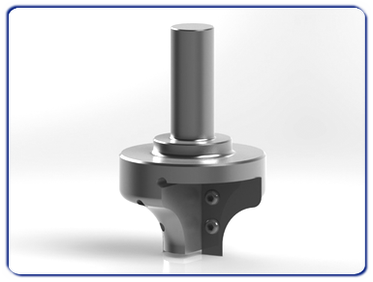

Article 0470 Insert profiled router cutters z2
Technical specifications:
Insert cutters with two Hc profiled inserts, 2 mm thickness.
Tool is provided with the set of profiled inserts by required profile.
Suitable for abrasive, hard, soft and glued woods, MDF, chipboard, plywood.
Application:
Manual or electronic router.

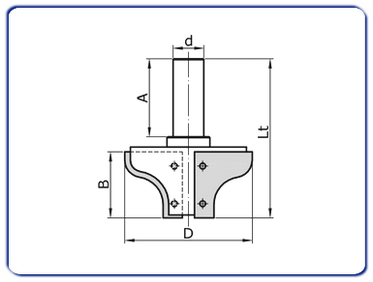

Diameter (D) |
Cutting hight (B) |
Shank (dxA) |
Cutting edges (Z) |
10 |
20/30/40/50/60/80 |
20x50/25x50 |
2 |
20 |
20/30/40/50/60/80 |
20x50/25x50 |
2 |
30 |
20/30/40/50/60/80 |
20x50/25x50 |
2 |
40 |
20/30/40/50/60/80 |
20x50/25x50 |
2 |
50 |
20/30/40/50/60/80 |
20x50/25x50 |
2 |
60 |
20/30/40/50/60/80 |
20x50/25x50 |
2 |
70 |
20/30/40/50/60/80 |
20x50/25x50 |
2 |
80 |
20/30/40/50/60/80 |
20x50/25x50 |
2 |
100 |
20/30/40/50/60/80 |
20x50/25x50 |
2 |
120 |
20/30/40/50/60/80 |
20x50/25x50 |
2 |
All measurments are in millimeters (mm). |
