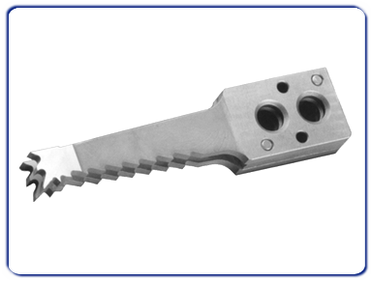

Article 1110 Simple chisel
Technical specifications:
The chisel is a cutting tool assembled on an eccentric head and produces mortises in the wood trough an oscillating motion. The tool's body is made of steel and the cutting blade is made of an HSS steel plate. The chisel can be simple or double (to perform the two mortises simultaneously), may have one or two inclined sides (to perform slating mortises).
Suitable for solidwood.
Application:
Mortiser.

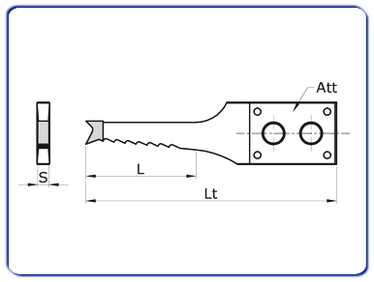

Thickness (S) |
Mortise width (B) |
Depth (P) |
Cutting edges (Z) |
Lenght (Lt) |
Shank (Att) |
4/5 |
20÷25/25÷30/30÷35 |
35/50/70 |
2/3 |
on request |
by design |
6/12 |
20÷25/25÷30/30÷35 |
35/50/70/90/110/130 |
2/3/4 |
on request |
by design |
13/18 |
20÷25/25÷30/30÷35 |
35/50/70/90/110/130 |
2/3/4 |
on request |
by design |
19/25 |
20÷25/25÷30/30÷35 |
35/50/70/90/110/130 |
2/3/4 |
on request |
by design |
All measurments are in millimeters (mm). |
