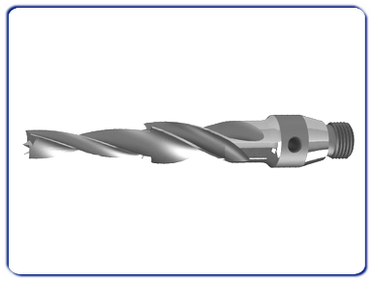

Article 0745 Double drill
Technical specifications:
Drill bit with two head grinded spiral cutting edges and two cutting edges on bigger diameter, for double drill execution.
Tool is constructed of steel with a high chromium content (G + Mo + V) or HC reported.
Hc execution suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Hss execution suitable for soft, hard and non-
Boring machine.

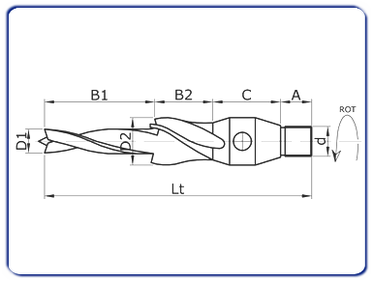

Diameter (D) |
Shank (d x A) |
Machine |
Cutting edges (Z) |
10/12/14/16/18/20/22/24/26/30/36/40 |
8/10/12 x 30 |
Machine with cylindrical shank |
2 + 2 |
10/12/14/16/18/20/22/24/26/30/36/40 |
M 8 |
Nottmeyer |
2 + 2 |
10/12/14/16/18/20/22/24/26/30/36/40 |
M 8 |
Morbidelli, Masterwood, Nottmeyer |
2 + 2 |
10/12/14/16/18/20/22/24/26/30/36/40 |
M 8 |
Bilek, Balestrini |
2 + 2 |
10/12/14/16/18/20/22/24/26/30/36/40 |
M 10 |
Torwegge, Holzma, Mayer, |
2 + 2 |
10/12/14/16/18/20/22/24/26/30/36/40 |
M 10 |
Ompec, Balestrini, Vitap, Busellato |
2 + 2 |
10/12/14/16/18/20/22/24/26/30/36/40 |
M 10 |
Morbidelli, Biesse, Weeke, Reimal, Masterwood, Vitap |
2 + 2 |
All measurments are in millimeters (mm). |
