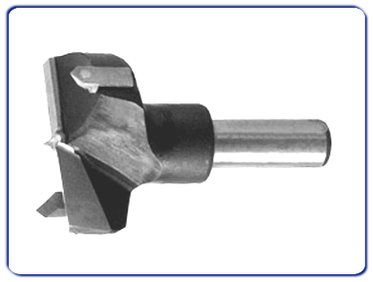

Article 0740 Hinge boring bits
Technical specifications:
Hinge mortise drill bit with two front cutting edges, two spurs and central tip for precision drilling.
Tool is built of synthesized tungsten carbide and other carbides.
Suitable for softwood, hardwood, glued woods, MDF, chipboard.
Application:
Boring machine.

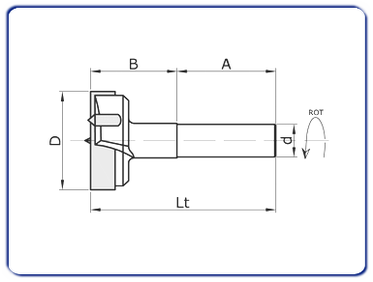

Diameter (D) |
Lenght (Lt) |
Shank (d x A) |
Cutting edges (Z) |
10 |
90 |
10 x 30 |
2 + 2 |
12 |
90 |
10 x 30 |
2 + 2 |
14 |
57,50/70 |
10 x 30 |
2 + 2 |
15 |
57,50/70/90 |
10 x 30 |
2 + 2 |
16 |
57,50/70/90 |
10 x 30 |
2 + 2 |
17 |
57,50 |
10 x 30 |
2 + 2 |
18 |
57,50/70/77/90 |
10 x 30 |
2 + 2 |
19 |
57,50 |
10 x 30 |
2 + 2 |
20 |
57,50/70/77/90 |
10 x 30 |
2 + 2 |
22 |
57,50/70/90 |
10 x 30 |
2 + 2 |
24 |
57,50/90 |
10 x 30 |
2 + 2 |
25 |
57,50/70/77/90 |
10 x 30 |
2 + 2 |
26 |
57,50/70/90 |
10 x 30 |
2 + 2 |
28 |
57,50/90 |
10 x 30 |
2 + 2 |
30 |
57,50/70/77/90 |
10 x 30 |
2 + 2 |
32 |
57,50/90 |
10 x 30 |
2 + 2 |
34 |
57,50 |
10 x 30 |
2 + 2 |
35 |
57,50/70/77/90 |
10 x 30 |
2 + 2 |
38 |
57,50/70/90 |
10 x 30 |
2 + 2 |
40 |
57,50/70/90 |
10 x 30 |
2 + 2 |
45 |
90 |
10 x 30 |
2 + 2 |
50 |
90 |
10 x 30 |
2 + 2 |
All measurments are in millimeters (mm). |
