PRODUCTS > BITS

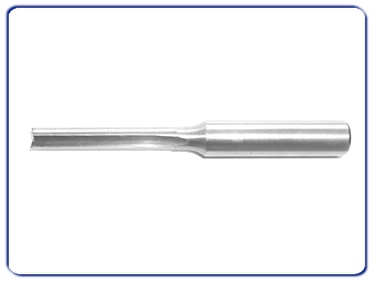

Article 0705 Mortising bits z3 -
Technical specifications:
Mortise bit with two HSS straight cutting edges, haed and side grinded
Tool is constructed of steel with a high chromium content (G + Mo + V).
Suitable for softwood and hardwood.
Application:
Mortising machine.

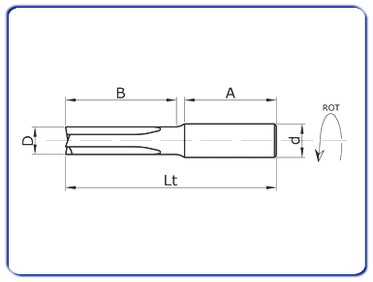

Diameter (D) |
Lenght (Lt) |
Shank (d x A) |
Cutting edges (Z) |
6 |
110 |
13/16 x 50 |
3 |
7 |
110 |
13/16 x 50 |
3 |
8 |
110 |
13/16 x 50 |
3 |
9 |
110 |
13/16 x 50 |
3 |
10 |
110 |
13/16 x 50 |
3 |
11 |
110 |
13/16 x 50 |
3 |
12 |
110 |
13/16 x 50 |
3 |
13 |
110 |
13/16 x 50 |
3 |
14 |
115 |
13/16 x 50 |
3 |
15 |
115 |
13/16 x 50 |
3 |
16 |
115 |
13/16 x 50 |
3 |
17 |
115 |
13/16 x 50 |
3 |
18 |
115 |
13/16 x 50 |
3 |
19 |
115 |
13/16 x 50 |
3 |
20 |
115 |
13/16 x 50 |
3 |
All measurments are in millimeters (mm). |
