PRODUCTS > INSERT AND KNIVES

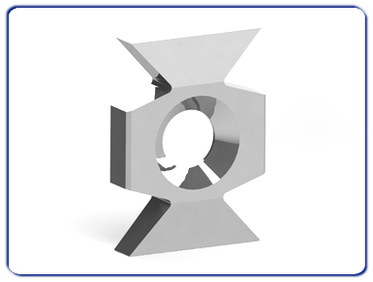

Article 0553 Anti capillary groove inserts -
Technical specifications:
HW (integral tungsten carbide) ambidextrous anti capillary groove inserts with 4 cutting edges.
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

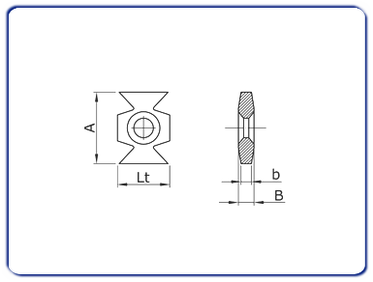

Lenght (Lt) |
Height (A) |
Thickness (B/b) |
Cutting edges (Z) |
16 |
22 |
5/2,60 |
4 |
16 |
22 |
7/4,60 |
4 |
16 |
22 |
10/4,30 |
4 |
16 |
22 |
10/7 |
4 |
All measurments are in millimeters (mm). |
