PRODUCTS > INSERT AND KNIVES

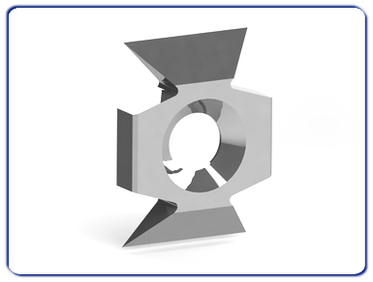

Article 0551 Bevelling inserts -
Technical specifications:
HW (integral tungsten carbide) ambidextrous chamfers with 4 cutting edges.
Suitable for softwood, hardwood, glued-
Parts for mechanical locking tools.

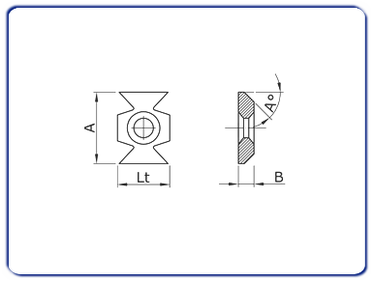

Lenght (Lt) |
Height (A) |
Angle (A°) |
Cutting edges (Z) |
16 |
22 |
45° |
4 |
All measurments are in millimeters (mm). |
