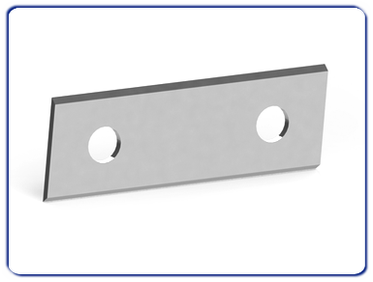

Article 0520 Inclined reversible inserts -
Technical specifications:
HW (integral tungsten carbide) inckined inserts with 2 or 4 cutting edges to 35 ° or 45 ° clearence.
Suitable for softwood, hardwood, glued.
Micro Grain HW (integral tungsten carbide) inclined inserts with 2 cutting edges to 35 ° clearence.
Suitable for MDF, chipboard, melamine coated and laminate.
Application:
Parts for mechanical locking tools.

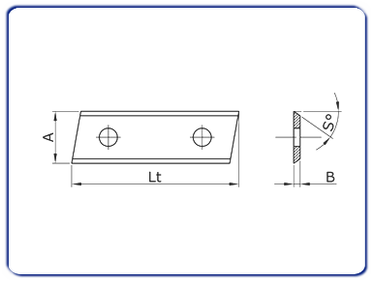

Lenght (Lt) |
Height (A) |
Thickness (B) |
Clearence (S°) |
Rotation |
Cutting edges (Z) |
9,60 |
12 |
1,50 |
35°/45° |
Dx/Sx |
2 |
12 |
12 |
1,50 |
35°/45° |
Dx/Sx |
2 |
15 |
12 |
1,50 |
35°/45° |
Dx/Sx |
2 |
20 |
12 |
1,50 |
35°/45° |
Dx/Sx |
2 |
30 |
12 |
1,50 |
35°/45° |
Dx/Sx |
2 |
40 |
12 |
1,50 |
35°/45° |
Dx/Sx |
2 |
50 |
12 |
1,50 |
35°/45° |
Dx/Sx |
2 |
All measurments are in millimeters (mm). |
