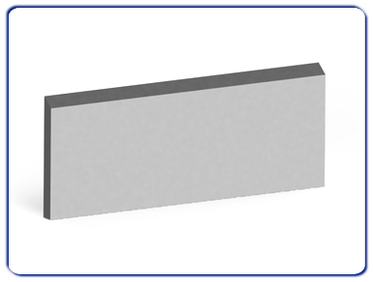

Article 0505 Steel planing knives -
Technical specifications:
Planer knives, HL to 13% of Cr or HS (HSS) with 18% W.
Knife by the HL to 13% of Cr is usually used for the hobby and for roughing with dirty woods or in the presence of nails or debris.
The knife by HSS or KHS at 18 W is used in cabinetry and work of value, has excellent durability and a good finish.
Suitable for hard and soft woods.
Application:
Parts for mechanical locking tools.

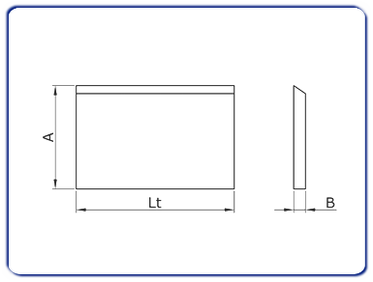

Lenght (Lt) |
Height (A) |
Thickness (B) |
Cutting edges (Z) |
Quality |
60 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
80 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
100 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
120 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
150 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
180 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
200 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
230 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
250 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
300 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
350 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
400 |
20/25/30/35 |
3 |
1 |
18%W / 13%CR |
450 |
25/30/35 |
3 |
1 |
18%W / 13%CR |
500 |
25/30/35 |
3 |
1 |
18%W / 13%CR |
530 |
30/35 |
3 |
1 |
18%W / 13%CR |
600 |
30/35 |
3 |
1 |
18%W / 13%CR |
630 |
30/35 |
3 |
1 |
18%W / 13%CR |
700 |
30/35 |
3 |
1 |
18%W / 13%CR |
800 |
30/35 |
3 |
1 |
18%W / 13%CR |
900 |
30/35 |
3 |
1 |
18%W / 13%CR |
1000 |
30/35 |
3 |
1 |
18%W / 13%CR |
1010 |
30/35 |
3 |
1 |
18%W / 13%CR |
1050 |
30/35 |
3 |
1 |
18%W / 13%CR |
1070 |
30/35 |
3 |
1 |
18%W / 13%CR |
All measurments are in millimeters (mm). |
