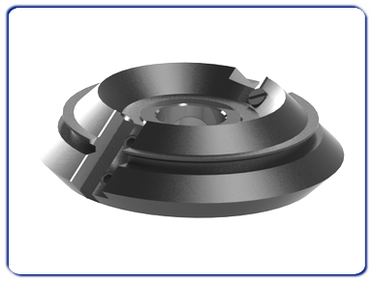

Article 0332 Insert 45° joint cutter
Technical specifications:
Insert cutter for 45° joints.
The tool is made with Hc (brazed tungsten carbide) profiled inserts, 2 mm thick or with reversible knives shaped thickness 1.50 mm.
Suitable for hard, soft and glued woods, MDF.
Application:
Moulder, spindle moulder.

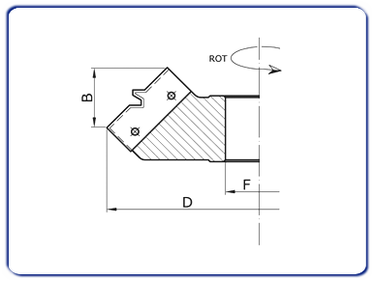

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
180 |
35 |
30/35/40/50 |
2 / 2+2 |
All measurments are in millimeters (mm). |
