PRODUCTS > INSERT CUTTERS

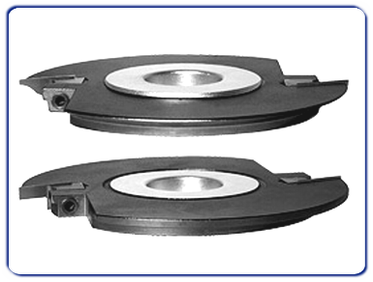

Article 0335 Kitchen doors insert cutter set
Technical specifications:

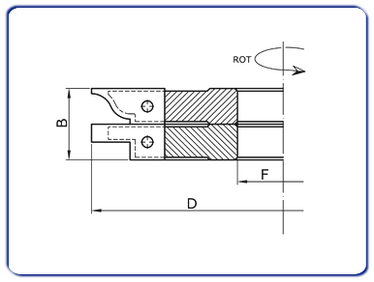

Profiled cutter by according technical drawing. The cutters executed the profile and counter of cabinet doors
The tool is made with Hc (brazed tungsten carbide) profiled inserts, 2 mm thick.
Suitable for abrasive, hard, soft and glued woods, MDF, plywood.
Application:
Moulder, spindle moulder, tenoning machine.
Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
150 |
24 |
30/35/40 |
2+2 |
All measurments are in millimeters (mm). |
