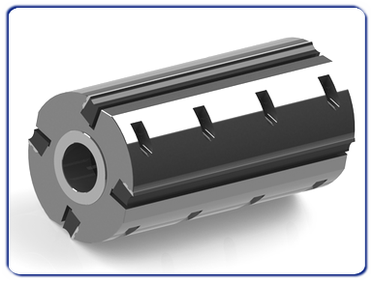

Article 0362 Insert planing cutters Centrolock
Technical specifications:
The tool is made with Hc (brazed tungsten carbide) or HSS (18%W) straight knives 3 mm thick.
The body is made of light alloy with steel bushings.
Hc execution suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Hss execution suitable for soft, hard and non-
Moulder, spindle moulder.

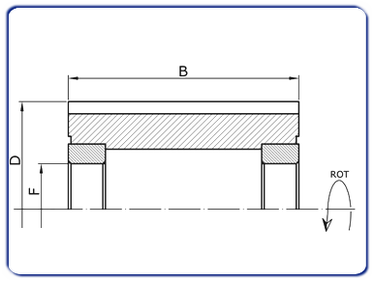

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
125 |
80/100/130/150/170/180/190/230/240/260 |
30/35/40 |
4 |
140 |
80/100/130/150/170/180/190/230/240/260 |
30/35/40 |
6 |
All measurments are in millimeters (mm). |
