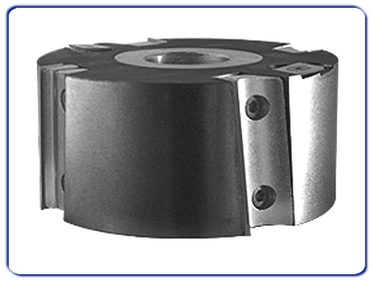

Article 0305 Insert rebate cutters
Technical specifications:
Plain insert cutter with sharp straight or angled.
The tool is made with Hc (brazed tungsten carbide) profiled inserts, 1,50 mm thick.
Suitable for abrasive, hard, soft and glued woods, MDF, plywood and chipboard.
Application:
Moulder, shaper, spindle moulder, squaring, tenoning machine, cnc machining center for windows.

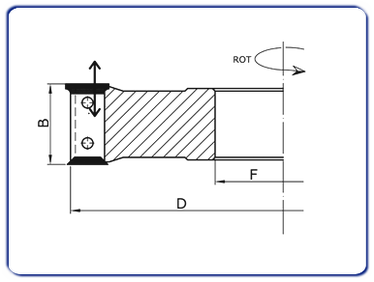

Diameter (D) |
Cutting hight (B) |
Bore (F) |
Cutting edges (Z) |
80 |
12/15/20/30/40/50/60 |
30/35 |
2/3/4 |
100 |
12/15/20/30/40/50/60 |
30/35/40 |
2/3/4/6 |
120 |
12/15/20/30/40/50/60 |
30/35/40/50 |
2/3/4/6 |
140 |
12/15/20/30/40/50/60 |
30/35/40/50 |
2/3/4/6 |
160 |
12/15/20/30/40/50/60 |
30/35/40/50 |
2/3/4/6 |
180 |
12/15/20/30/40/50/60 |
30/35/40/50 |
2/3/4/6 |
200 |
12/15/20/30/40/50/60 |
30/35/40/50 |
2/3/4/6 |
250 |
12/15/20/30/40/50/60 |
30/35/40/50 |
2/3/4/6 |
300 |
12/15/20/30/40/50/60 |
30/35/40/50 |
2/3/4/6 |
All measurments are in millimeters (mm). |
